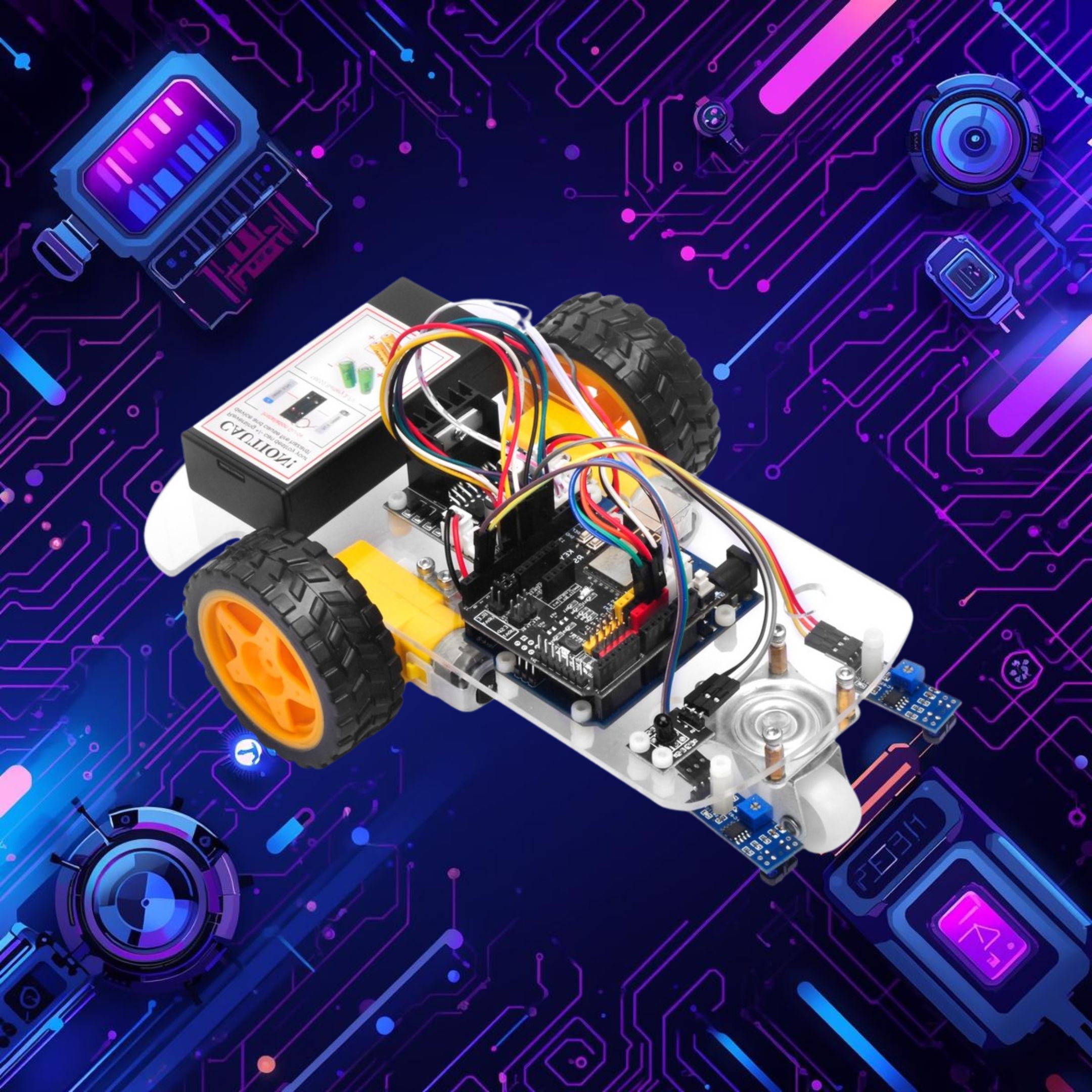

2WD Alpha Module 3 – IR Line Follower Car (Precision DIY Robotics Kit)

The Gold Standard for Autonomous Navigation

The 2WD Alpha Module 3 is engineered for precision. While basic robots wander aimlessly, this Module focuses on the discipline of path-following—the same technology used in modern automated warehouses and high-tech production lines. By using a sophisticated triple-sensor infrared (IR) array, this car doesn’t just “see” a line; it interprets the track to make smooth, fluid adjustments to its trajectory.

How the Infrared Logic Works

At the front of the Alpha Module 3 sits a bank of three IR modules. Each sensor works on a simple yet powerful principle:

1. Emission: The IR LED sends out an invisible beam of light.

2. Reflection: Light surfaces reflect the beam, while dark surfaces (like a black track) absorb it.

3. Processing: The Arduino UNO R3 analyzes which sensor is “active” and calculates exactly which motor needs to speed up or slow down to stay centered.

Pro Tip: Having three sensors instead of two allows the Alpha Module 3 to handle sharp 90-degree turns and intersections that would leave simpler robots stranded.

Why Choose Alpha Module 3?

• Industrial-Grade Learning: This kit simulates Real-World AGVs (Automated Guided Vehicles). It is a fantastic bridge between “toy” robotics and practical engineering.

• Modular & Versatile: The clear acrylic chassis is pre-drilled for easy mounting, allowing you to add more sensors or upgrades as your coding skills grow.

• High-Torque Performance: Equipped with dual 1:48 ratio gear motors, this robot maintains consistent speed and torque, ensuring it won’t stall during tight maneuvers.

• User-Friendly Assembly: We’ve selected components that prioritize “plug-and-play” connectivity using high-quality jumper wires. No frustrating soldering is required to get your first track run started!

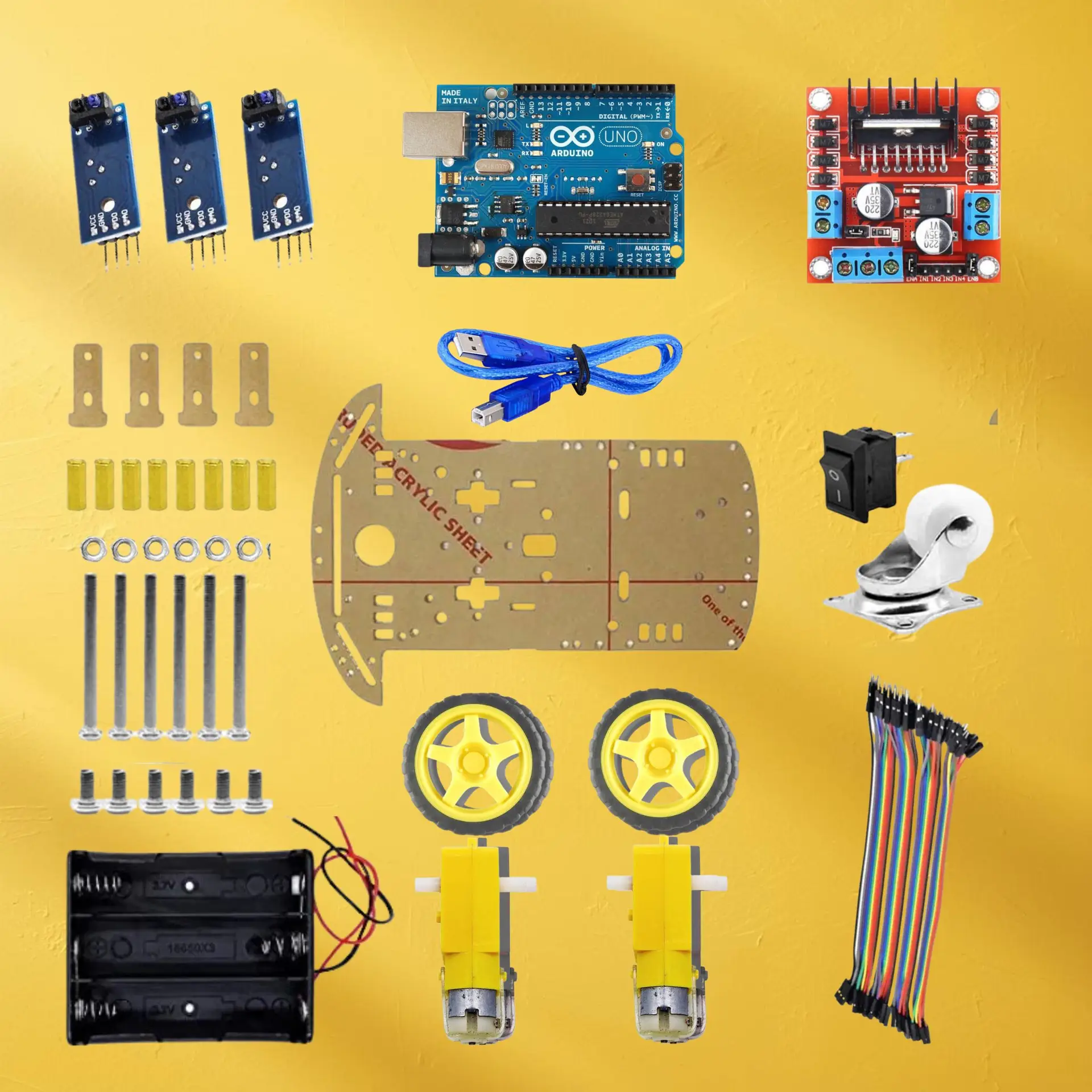

Complete Component Breakdown

Inside every Alpha Module 3 box, you will find high-quality parts selected for durability and performance:

• 1x Arduino-Compatible UNO R3: The powerful microcontroller that serves as the brain of your operation.

• 3x Precision IR Line Tracking Sensors: For high-fidelity path detection.

• 1x L298N Dual H-Bridge Motor Driver: To manage the power distribution and motor direction.

• 1x Premium Laser-Cut Chassis: A durable and transparent platform that makes your wiring look professional.

• 2x High-Grip Rubberized Wheels: Designed to provide maximum traction on smooth surfaces.

• 2x DC Gear Motors: Reliable power for all-day testing.

• 1x Battery Holder & Caster Wheel: Everything you need for a balanced, mobile platform.

• 1x Set of Hardware & Wires: Includes all necessary screws, nuts, brass standoffs, and a USB programming cable.

Technical Specifications

• Input Voltage: 6V to 9V (Battery powered).

• Microcontroller: ATmega328P (Arduino UNO R3 compatible).

• Detection Range: 1cm – 2.5cm (Optimized for ground tracking).

• Chassis Color: High-clarity transparent acrylic.

• Motor Ratio: 1:48.
